A Labeled Panel Saves You in an Emergency. Here Is How to Map It.
Panel and circuit work across Fairfax, Loudoun, Arlington, and Prince William Counties.
Hi, I am Peter, the Master Electrician at PRO Electric plus HVAC. Most of the panels I open have labels that are faded, wrong, or missing entirely. That is fine until the moment you need to shut off the right circuit fast, and then it matters a lot. Mapping your panel is a safe afternoon project for a homeowner, and it pays off every time you need it. Here is how I would do it.

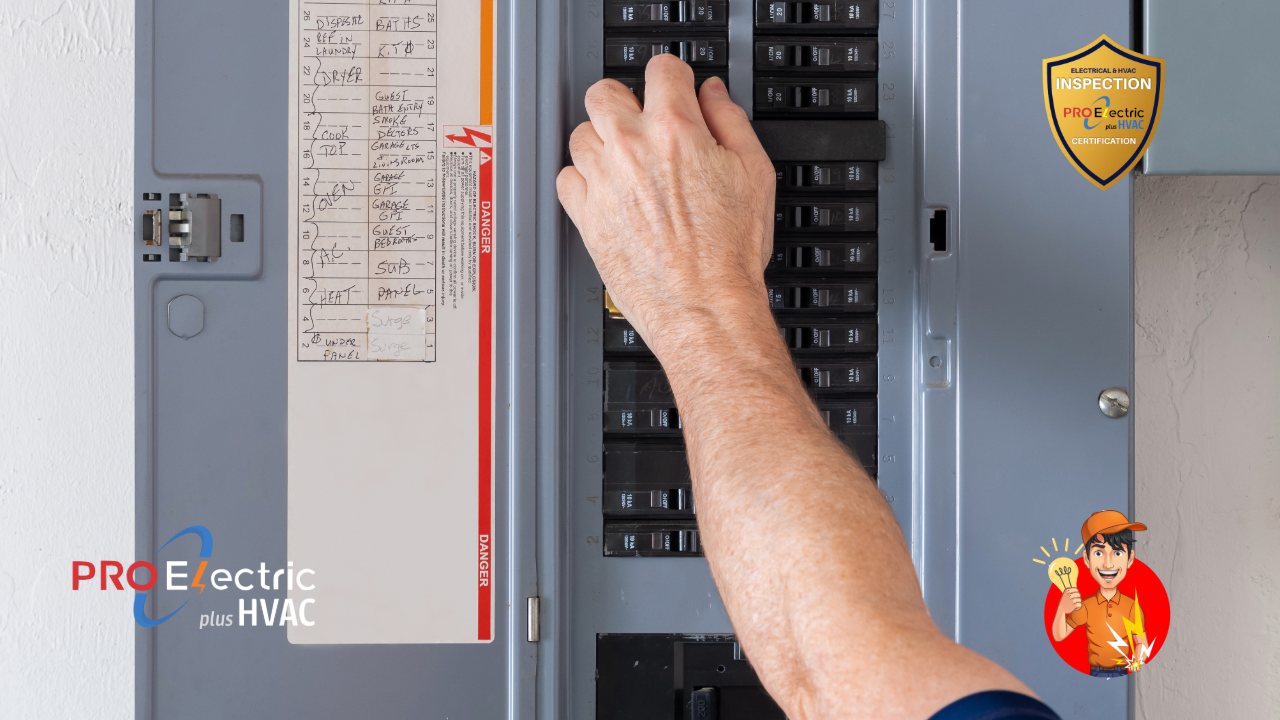

The goal is simple: a clear, accurate label for every breaker, so anyone in the house can find the right one quickly. You do not need any special tools, just a helper and a little patience.
What you will need
- A helper. One person at the panel, one moving through the house, makes this go much faster, ideally with phones to talk.
- A lamp or a small night light. Plug it into each outlet to see when it loses power.
- A notepad or your phone. To record each breaker as you go before making final labels.
How to map the panel, step by step
- Number every breaker. Give each breaker a number, top to bottom, so you have a consistent reference.
- Turn off one breaker at a time. Flip a single breaker off, then have your helper find what went dead, the outlets, lights, and appliances in each room.
- Test outlets with the lamp. Move the lamp from outlet to outlet to confirm which ones are on that breaker, and try the lights and switches too.
- Write down everything that breaker controls. Be specific, such as kitchen south wall outlets, or upstairs hall lights.
- Repeat for every breaker, then label. Once you have mapped them all, write clear labels on the panel door.
Reset clocks and unplug sensitive electronics first
Before you start flipping breakers, unplug or properly shut down computers and other sensitive electronics, since cutting their power abruptly is not good for them. Be aware you will need to reset clocks on ovens, microwaves, and similar afterward. And leave the two large breakers serving the air handler, furnace, or AC for last, or skip them, so you do not short cycle the equipment by flipping it off and on.
A few cautions
Mapping a panel by switching breakers is homeowner safe, because you are only flipping switches, not touching wiring. What is not a homeowner job is opening the panel cover or working on the breakers themselves, where live parts are exposed. If a breaker will not stay on, feels warm, or you find one that does not seem to control anything, those are signs to bring in an electrician, and they can connect to why half the house loses power or a breaker keeps tripping.
How we help
If your panel is a mystery, overcrowded, or showing its age, we can map it, relabel it properly, and flag anything that needs attention, from double tapped breakers to a panel that is out of room. You can read more about panel work on our circuit breaker and panel service. We handle this across Northern Virginia.
Frequently asked questions
How do I find out which breaker controls what?
Number every breaker, then turn off one at a time while a helper checks which outlets, lights, and appliances lose power, using a plug in lamp to test outlets. Record what each breaker controls, then write clear labels. It is a safe project since you are only flipping switches, not touching wiring.
Is it safe to map my own breaker panel?
Flipping breakers on and off to see what they control is safe, because you are not touching any wiring or removing the panel cover. What is not a homeowner job is opening the panel or working on the breakers, where live parts are exposed. Keep it to switching breakers and labeling.
Why should I label my breaker panel?
In an emergency, such as water near an outlet or a spark, you want to cut power to the right circuit immediately, and a clearly labeled panel lets anyone do that fast. It also saves time during repairs and projects. Faded or wrong labels cost you exactly when speed matters.
What should I avoid when mapping my panel?
Unplug sensitive electronics first, since abruptly cutting power can harm them, and expect to reset clocks afterward. Leave the large breakers for the heating and cooling equipment for last or skip them to avoid short cycling the system. And never open the panel cover, which exposes live parts.
What if a breaker does not seem to control anything?
A breaker that appears to control nothing, will not stay on, or feels warm is worth having an electrician check. It can mean an abandoned circuit, a wiring issue, or a failing breaker. These are not things to force, and they sometimes tie into larger panel problems.
